Product Introduction

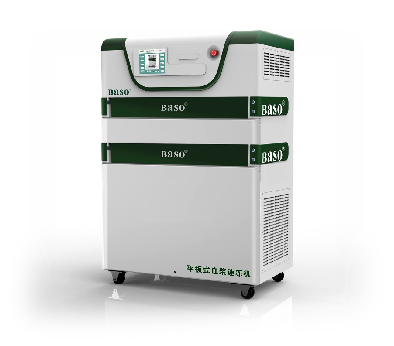

Name: BSSD-IV-02 Plasma Freezing System with Intelligent Temperature Control

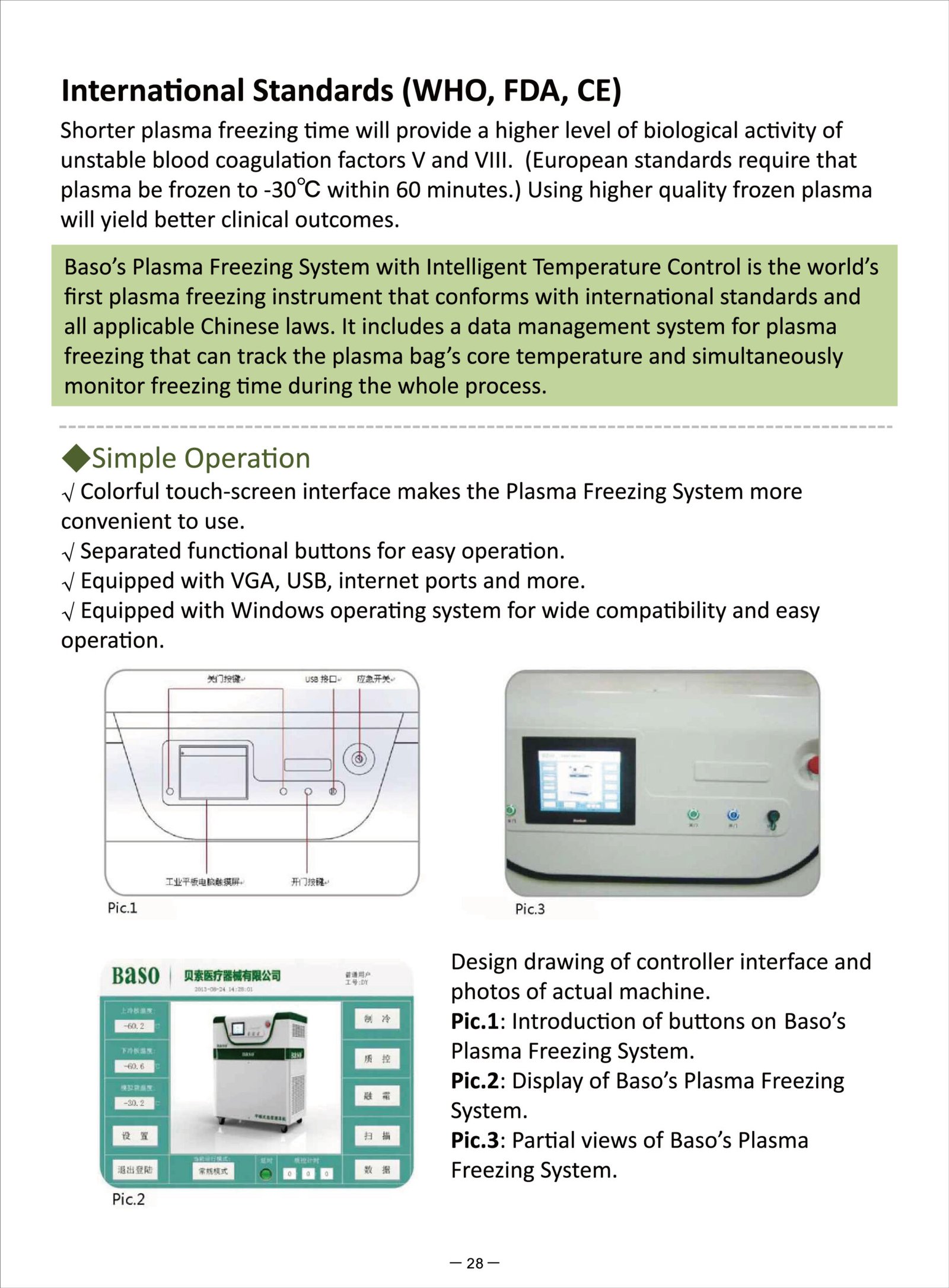

INTERNATIONAL STANDARDS (WHO, FDA, CE)

Shorter plasma freezing time will provide a higher level of biological activity of unstable blood coagulation factors V and VIII. (European standards require that plasma be frozen to -30℃ within 60 minutes.) Using higher quality frozen plasma will yield better clinical outcomes.

LOW TEMPERATURE OUTPUT

Upper and lower cold plates can reach a temperature of -60℃.
When processing a full load, it takes about 30 minutes to cool the core temperature of plasma bags to -30℃.

HIGH PERFORMANCE FREEZING SYSTEM

Contact shock freezer
Double layers are operated independently
High-efficiency freezing plates
Two-stage compressor
Environmentally-friendly refrigerant
ECO mode

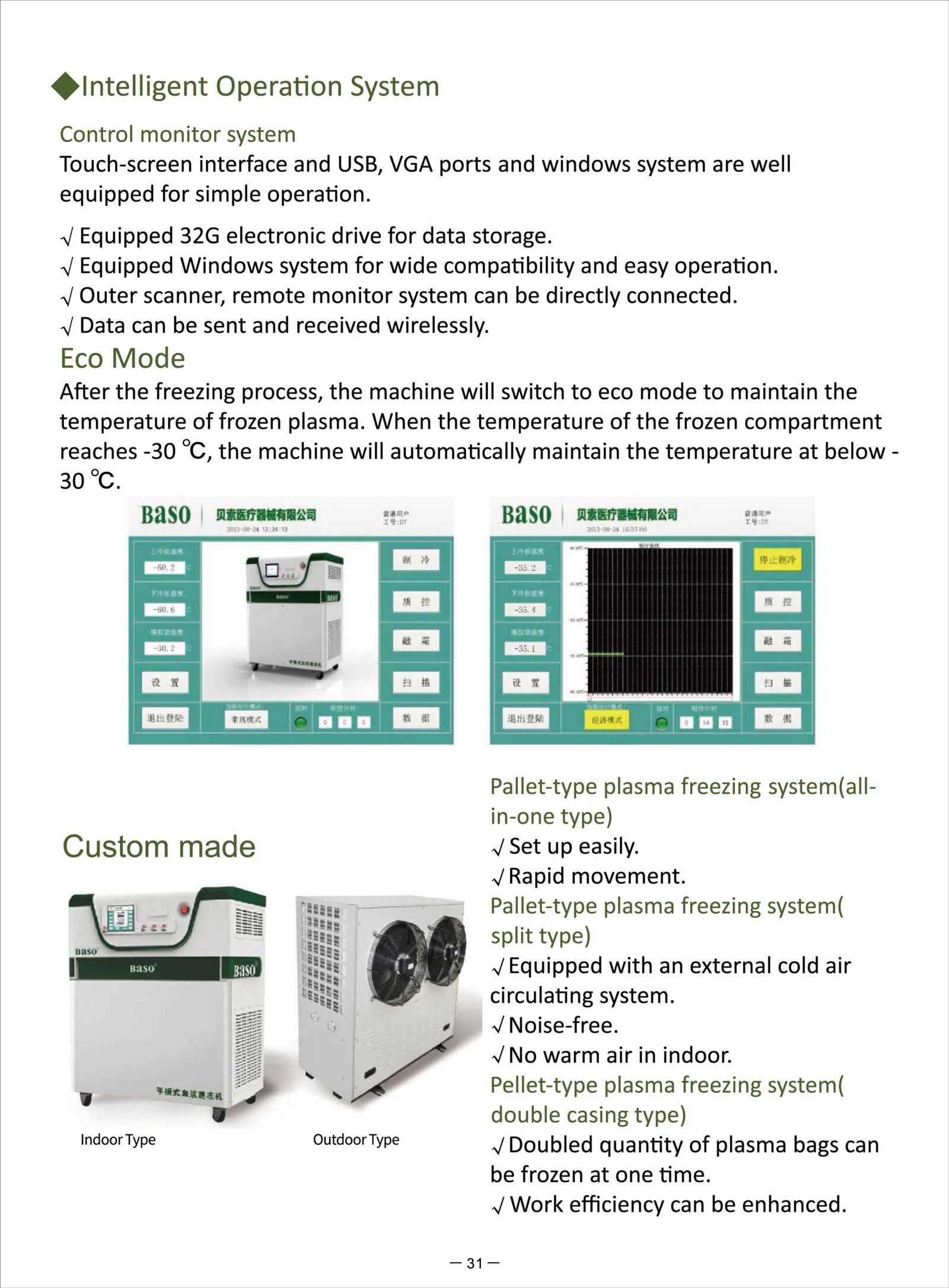

INTELLIGENT OPERATION SYSTEM

8.4 inches colorfull touchscreen interface

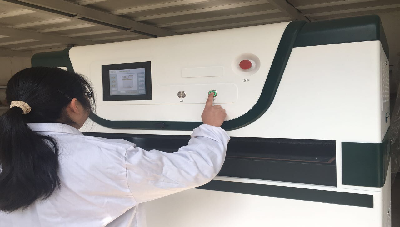

Separated functional buttons for easy operation
Equipped with Windows operating

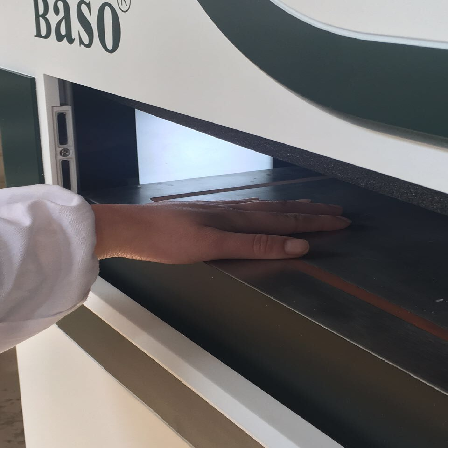

Laser curtain to anti-pinch hand to keep the operator in the safe side
Visual indication of error / warning
Data traceability and quality management​

USER-FRIENDLY DESIGN

Low noisy
Equiped with external air circulating
USB port for data collection

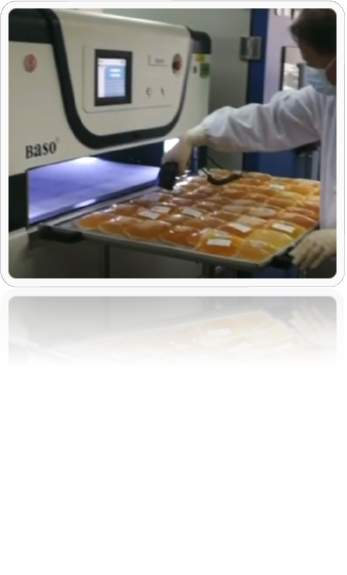

Barcode scanner
Anti-adhesion Pad to keep the plasma bag in good condition avoiding broken

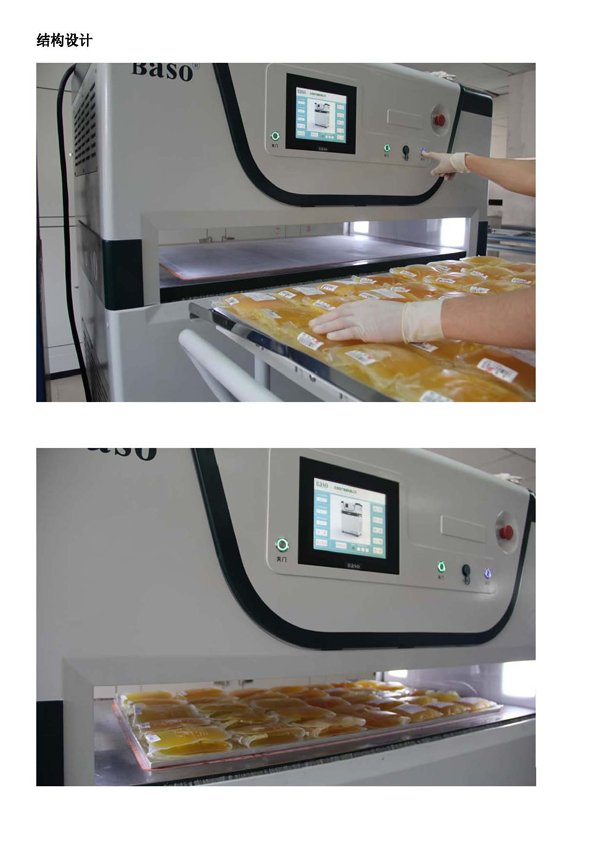

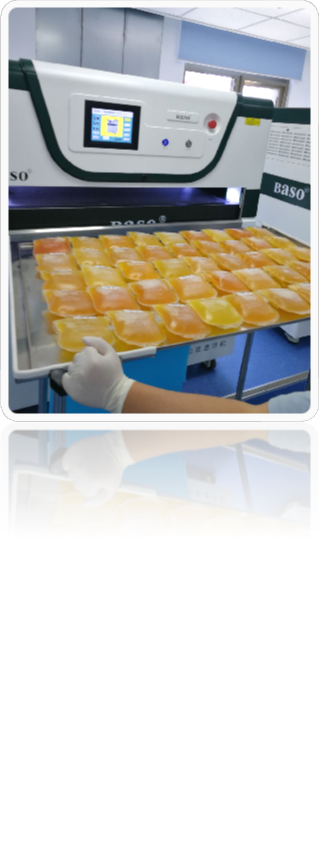

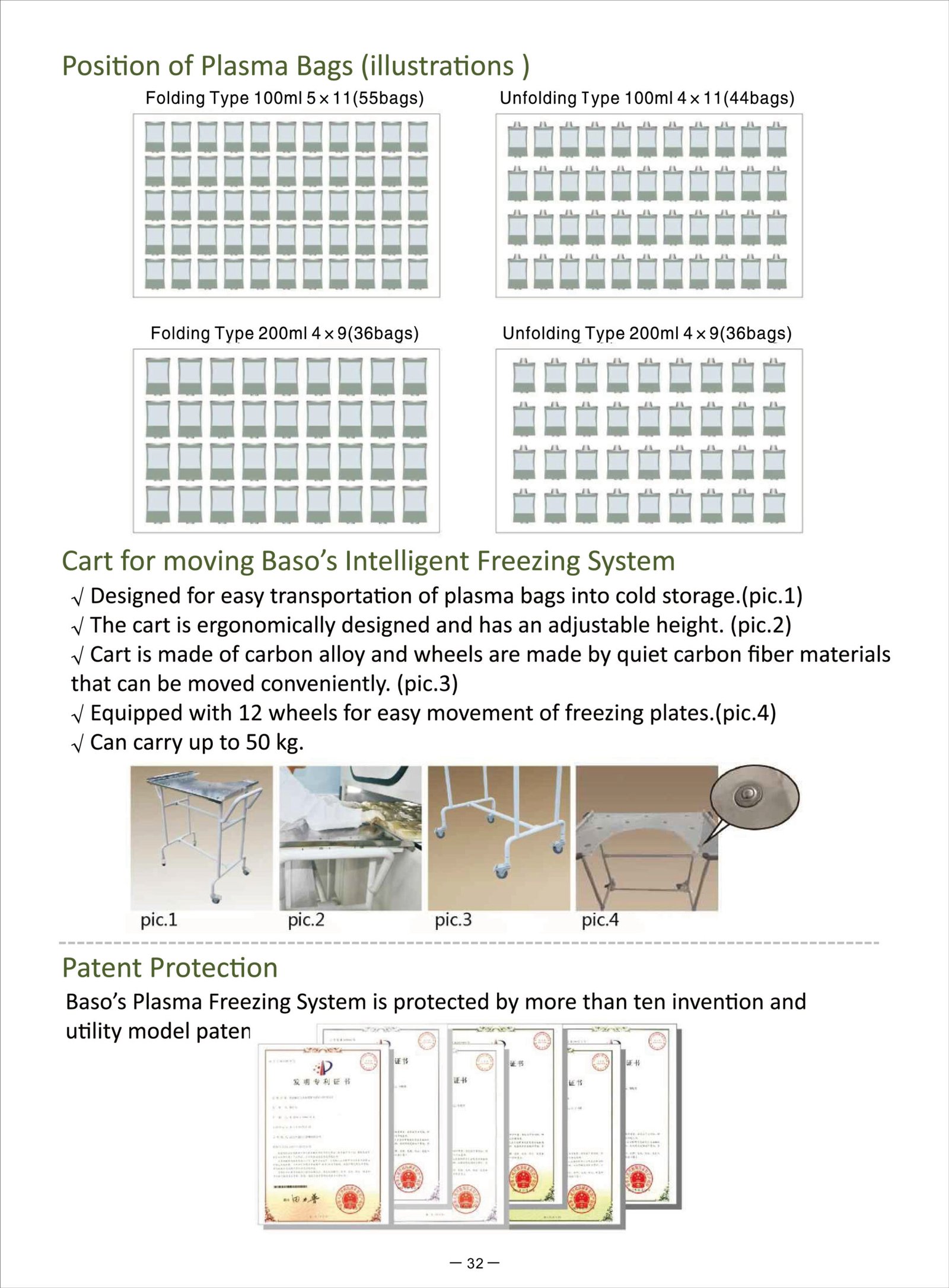

Customized cart and tray for easy to loading and moving the plasma bags

Application

Detail Information

Product Advantages

1.Simple Operation, Intelligent Operation System；
2.Low Temperature Output；

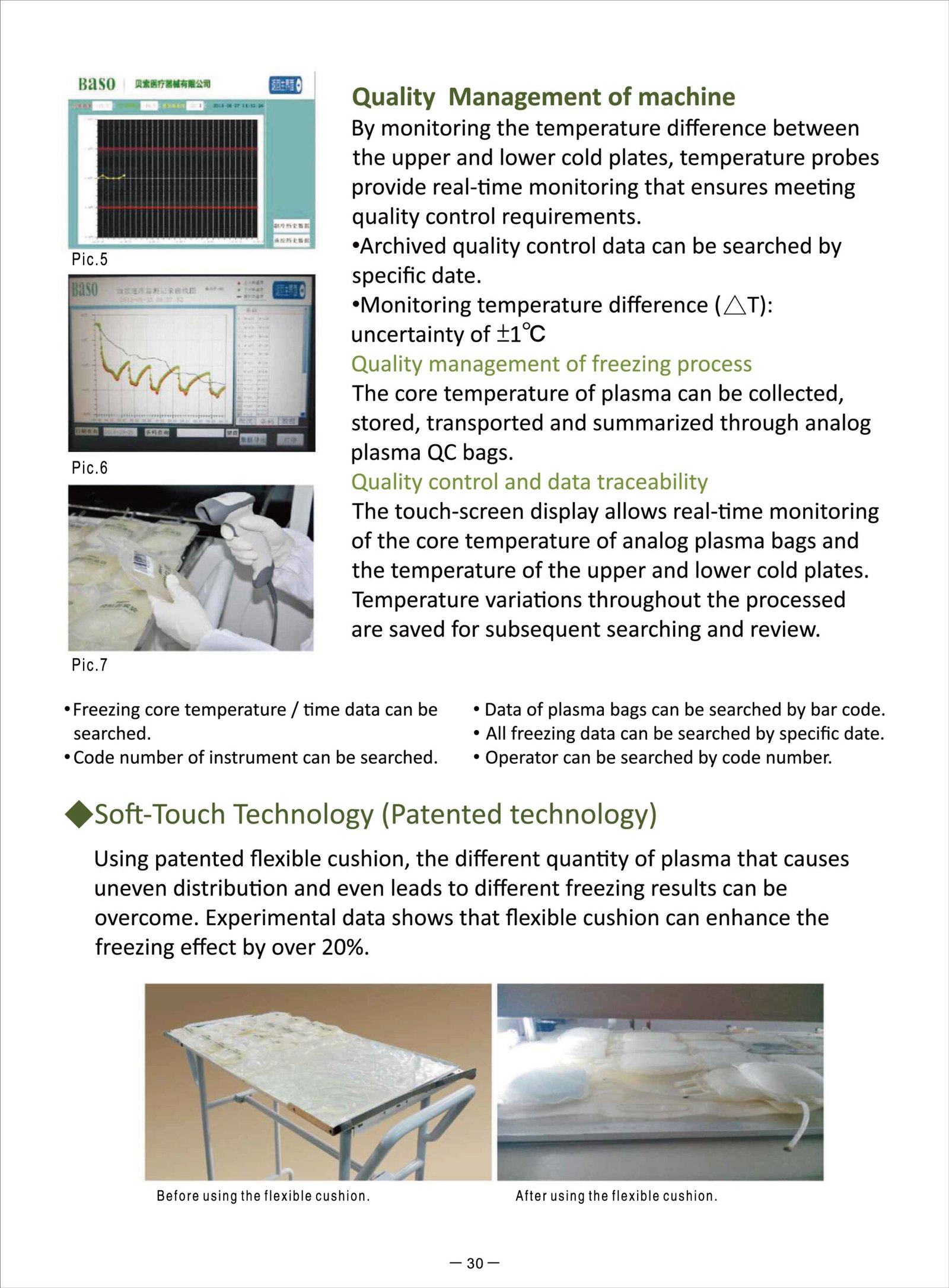

3.Data Traceability and Quality Management
4.Soft-Touch Technology (Patented technology)

Our plasma freezer includes a data management system for plasma freezing that can track the plasma bag’s core temperature and simultaneously monitor freezing time during the whole process.
